Quarto questions

Everyone is talking about Quarto. Maybe you’ve read some blogs or watched a presentation or two, but you still have questions. I’ve attempted to (briefly) provide some answers.

quarto
r
Author

Marc Dotson

Published

14 Oct 2022

It seems like everyone is talking about Quarto. Maybe you’ve read some blogs or watched a presentation or two, but you still have questions. In an attempt to provide some answers, I’ve put together and streamlined my notes in a way I hope is useful. This post is largely summarized from material presented in the Getting Started with Quarto and From R Markdown to Quarto workshops (where Andrew Bray’s super helpful hand-drawn illustrations come from), along with the Hello Quarto keynote, and other talks at rstudio::conf(2022). Most importantly, the Quarto website has incredible documentation.

But, if all of that feels like a lot, hopefully this can help ease you into things. This post is organized by the following questions and my best attempts to provide answers.

What is Quarto?

A quarto is a book size that results from folding each printed sheet into four leaves. (The picture above is actually half an octavo, but the illustration still serves.) It’s a real word. It means something. But we’re making it a proper noun and giving it a new definition:

Quarto is an open-source scientific and technical publishing system built on Pandoc.

Instead of writing a report or presentation in Word, PowerPoint, etc.; then running code in an R script; then saving output and visualizations; and then pasting them in the report or the presentation – we can do it all in Quarto, a free system especially tailored to scientific and technical publishing. Pandoc is what makes it possible to take a single Quarto document and produce a report, presentation, website, etc.

For those in the know, Quarto is the next generation of R Markdown. However, instead of being tied to R, Quarto is multilingual, used with R, Python, Julia, and Observable from RStudio, VS Code, and Jupyter. To make it available across all of these languages, it uses the command-line interface (not that you have to). It also makes use of Lua filters, which are extensions to Pandoc. That means instead of developing R packages to expand the functionality for R alone, development will happen in terms of Lua filters so functionality is available across languages.

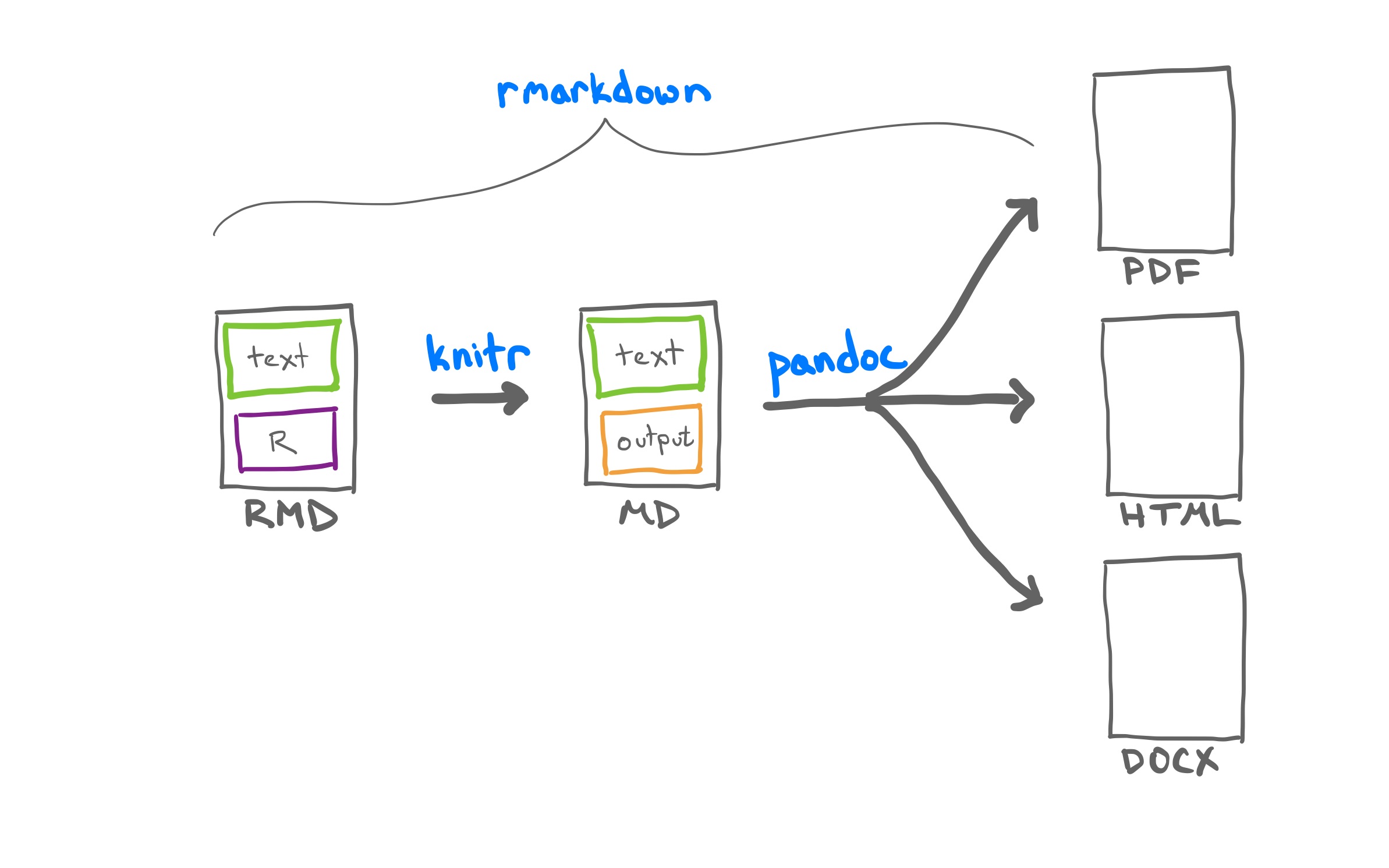

If you are familiar with R Markdown, you are probably familiar with this pipeline: When you knit an R Markdown .rmd file, the R package knitr converts your text and R code into a Markdown file and then uses Pandoc to produce whatever output you’ve specified.

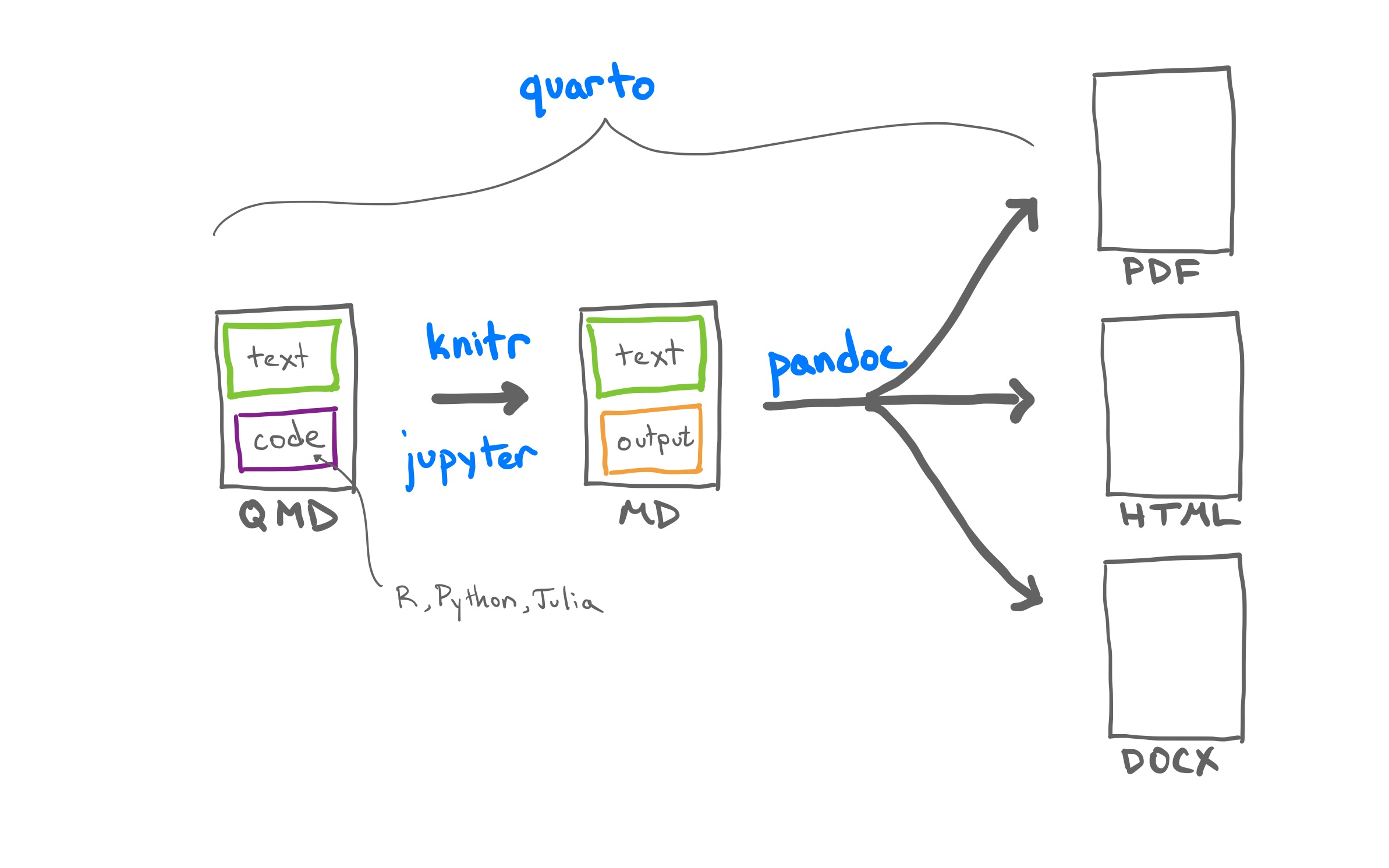

A Quarto .qmd file on the other hand can be composed of text and R, Python, and/or Julia code. Either the knitr or jupyter engines will then render your text and code into a Markdown file followed by Pandoc producing whatever output you’ve specified.

Quarto accomplishes this by being fully separate from the R ecosystem. You can even run it from the command-line interface (i.e., the shell or terminal), if you want to. While it distances itself from being language-specific in order to set up a bigger tent and provide the benefits of R Markdown to Python and Julia users alike, a move consistent with the positioning of RStudio-turned-Posit, it does align more closely with Pandoc and makes more options available in the back-end.

Should I switch from R Markdown to Quarto?

If you have a release of RStudio from at least the summer of 2022, you already have Quarto installed. But should you switch from using R Markdown? If you are an R Markdown power user, there might not be reason to move to Quarto. R Markdown will continue to be supported along with Quarto (in fact, the teams are the same at Posit). However, if you aren’t a power user, moving to Quarto is probably the right call.

Quarto is not only compute-agnostic for those who are multilingual or work in a multilingual environment, it also natively incorporates much of the functionality and ease-of-use that has been developed in the R Markdown ecosystem. What that means for less-than-power-users is that Quarto has incorporated and streamlined much of what R Markdown has to offer right out-of-the-box, without the need to download a ton of additional specialty packages.

For example, if you’ve used R Markdown to create presentations, you’ve probably used or at least heard of xaringan. It’s the most powerful R Markdown tool for creating presentations, and it can be incredibly finicky. If you know how to use it, great. If you don’t know how to use it, just leapfrog to Quarto and start creating revealjs presentations immediately.

This all comes with one big caveat: There is no replacement for flexdashboards in Quarto just yet. It’s something that is high on the priority list, but if a big part of your workflow requires the use of flexdashboards, it’s not yet the time to make the switch from R Markdown.

How do I get started using Quarto?

It’s helpful to consider the basic structure or grammar, if you will, of a document. For any given Quarto document, you’ll likely have:

  • Content (text, figures, tables, diagrams, etc.)
  • Code and output
  • Metadata (format, appearance, etc.)

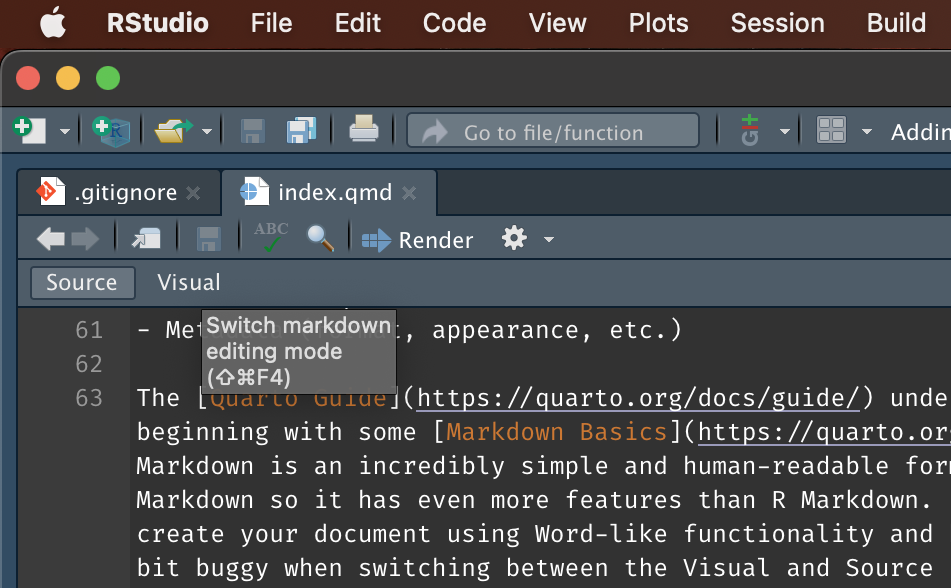

The Quarto Guide under Authoring has everything you need to get started, beginning with some Markdown Basics. Markdown is an incredibly simple and human-readable formatting syntax, and Quarto takes advantage of Pandoc Markdown so it has even more features than R Markdown. RStudio also includes a Visual Editor as well so you can create your document using Word-like functionality and have it write your Markdown for you, though it can be a bit buggy when switching between the Visual and Source Editors.

Divs and Spans

One of the more powerful, but possibly confusing, additions is the introduction of Divs and Spans.

Divs and Spans are generic HTML/CSS elements that are used to format a document. Divs are used for block-level formatting while Spans are used for in-line formatting.

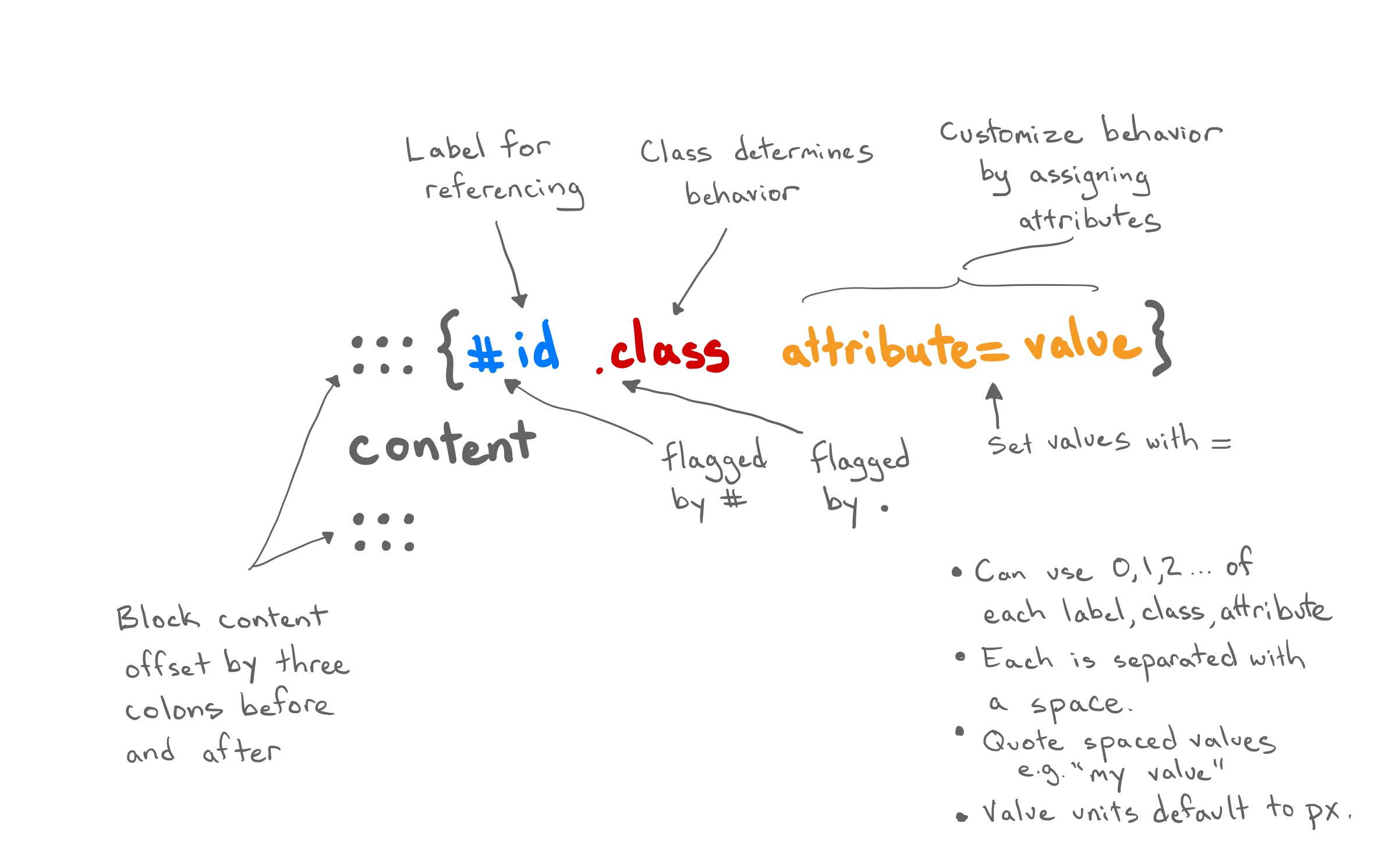

Let’s start with a Div (or Fenced Div) for formatting block elements.

This is incredibly useful if you want to format an entire block of content, such as a paragraph. For example, using the .callout-warning class, I can quickly make this:

Warning

Pay attention to this information!

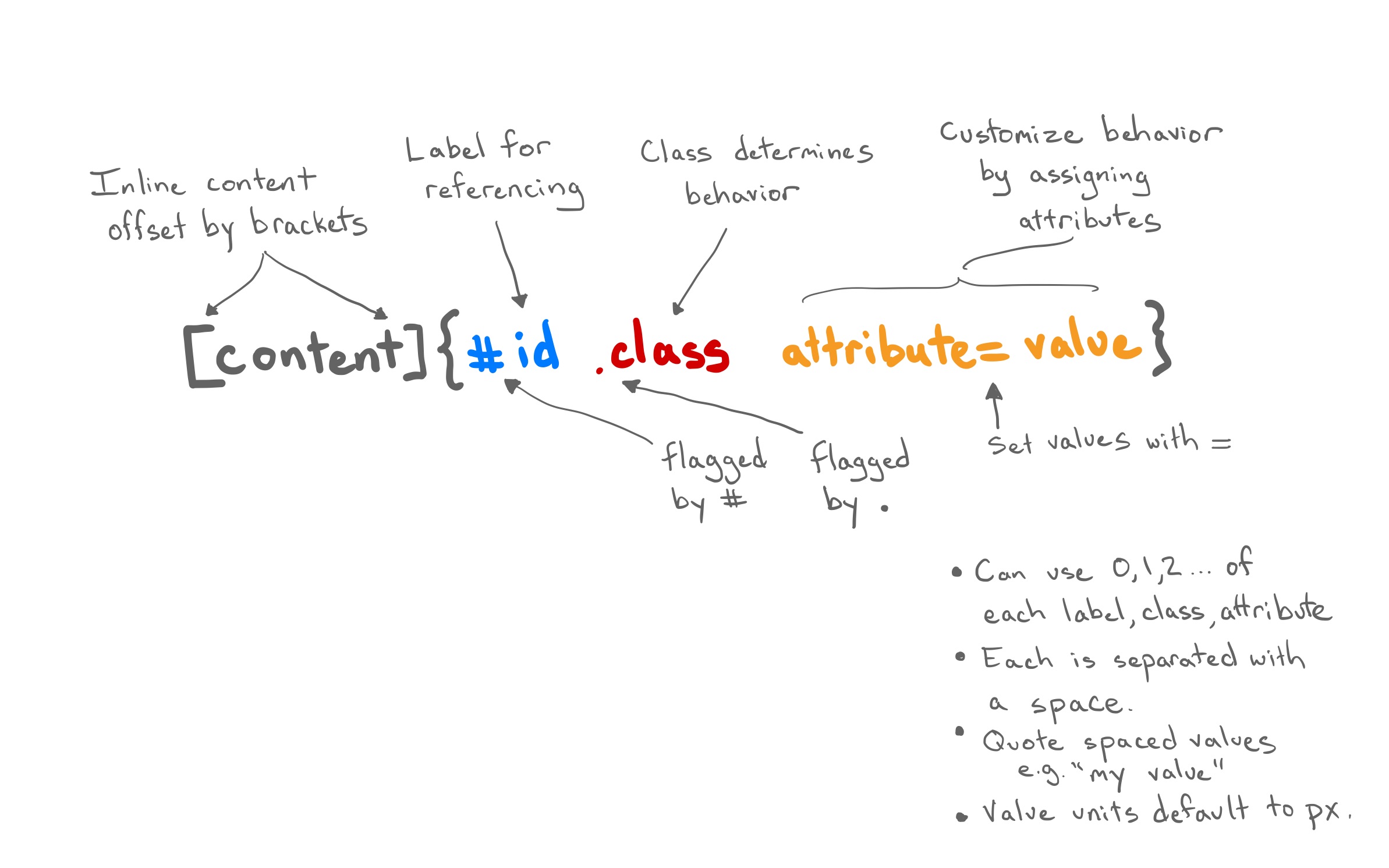

Spans (or Bracketed Spans) work similarly, but are used to format in-line elements.

Not all output formats support all classes of Divs and Spans, but including Divs and Spans provides a consistent way to format blocks and in-line content and represents one of the many benefits of Quarto aligning more closely with Pandoc.

YAML

At the top of each document is a header where most of the metadata lives. Think of it as global formatting or settings for the entire document. This is written in another language called Yet Another Markup Language (i.e., YAML). It looks like this:

---
title: "Untitled"
format: html
---

Like Markdown, YAML is incredibly simple and designed to be human-readable. It follows a key: value syntax. The header can include lots of different items, but perhaps the most is the format that, when you render a document, will tell Pandoc what type of document to create. Note that this is a change from R Markdown where format was called output. There are a number of changes like this, all part of making Quarto align more with Pandoc and better serve as a multilingual publishing tool. As a bonus, there is now YAML auto-completion with Quarto installed.

Code Blocks

Besides content like text, figures, etc., the real magic of using Quarto is including code and its output as part of the same document. Code blocks are included using syntax that looks very similar to a Div.

```{r}
#| echo: fenced
transcripts <- read_rds(here::here("Data", "transcripts.rds")) |>
  tibble() |>
  separate(doc_id, into = c("gvkey", "call_date", "title"), sep = "_")
```

The code block is fenced with```and the language in braces, but instead of attributes in the braces, or the old R Markdown code chunk options, Quarto code blocks use the new hashpipe operator #| where the options use YAML syntax. This allows for two things. First, the same YAML options can be used for languages other than R. Second, if there are code block options that you want to apply to the entire document, you can just move them into the header.

For example, echo: fenced says to not run the code but to show all of it, including the fence itself. We can include it for a specific code cell:

---
title: "Untitled"
format: html
---
```{r}
#| echo: fenced
transcripts <- read_rds(here::here("Data", "transcripts.rds")) |>
  tibble() |>
  separate(doc_id, into = c("gvkey", "call_date", "title"), sep = "_")
```

Or we can make it apply to all code blocks in the document by moving it into the header:

---
title: "Untitled"
format: html
execute:
  echo: fenced
---
```{r}
transcripts <- read_rds(here::here("Data", "transcripts.rds")) |>
  tibble() |>
  separate(doc_id, into = c("gvkey", "call_date", "title"), sep = "_")
```

One finicky thing to note: YAML keys and values all use lowercase. So if you’re switching from R Markdown, try not to get your TRUE and true mixed up!

What are the benefits of using Quarto for _____?

It’s worth repeating, but as the next generation of R Markdown, Quarto incorporates a lot of the benefits of the R Markdown ecosystem into its base installation. There is far too much to repeat here, and I’m not trying to recreate the Quarto documentation, but I’ll highlight a few things that I’ve found especially useful or interesting so far.

Documents

  • Parameterized documents function the same as in R Markdown, with data and variables included in the header under the params: key and saved as a list with named elements that can be referenced within the document.
  • Use code highlighting.
  • Freeze computationally intensive code so it only runs once or set freeze: auto so that it only re-renders when the source code changes.
  • Enable code folding in HTML documents with code-fold: true to have it available if needed.
  • Enable code linking in HTML documents with code-link: true to turn functions into links back to their online documentation (only available for knitr currently).
  • Built-in support for creating diagrams.
  • Add panel tabs in HTML documents with the {.panel-tabset} Div class.
  • Take advantage of the pre-made Quarto Journal templates.

Presentations

Everything for HTML documents applies to revealjs, plus the following.

  • Use revealjs as a replacement for xaringan.
  • The RStudio Visual Editor works with revealjs.
  • Use code animations.
  • The {.fragment} class for Divs and Spans to incrementally bring in parts of a slide in any order you choose.
  • Add multiple columns with the {.columns} Divs class.
  • Enable in-browser auto animation between slides.
  • Quickly turn you presentation into a chalkboard, which includes the option for users to create a PDF export of the slide deck.
  • Use multiplex to allow users to follow along with your slides and have them advance on their devices when you advance the presentation.

Websites

Everything for HTML documents applies to websites, plus the following.

  • Quickly start a website (like this blog) with a Quarto project.
  • Website functionality is richly detailed using YAML.
  • Quarto websites includes search automatically.

If you’re specifically looking to build a blog, here are a number of additional sources and examples that I’ve found useful in updating this blog to Quarto.

Final thoughts

Making a multilingual publishing system requires leaning more heavily on the set of additional languages that link them: Markdown, YAML, and especially Pandoc (and maybe some CSS as you need it). From what I’ve seen, it’s a solid foundation for a powerful tool that I hope brings more people into the big tent of functionality that R Markdown has come to provide for R users specifically.
